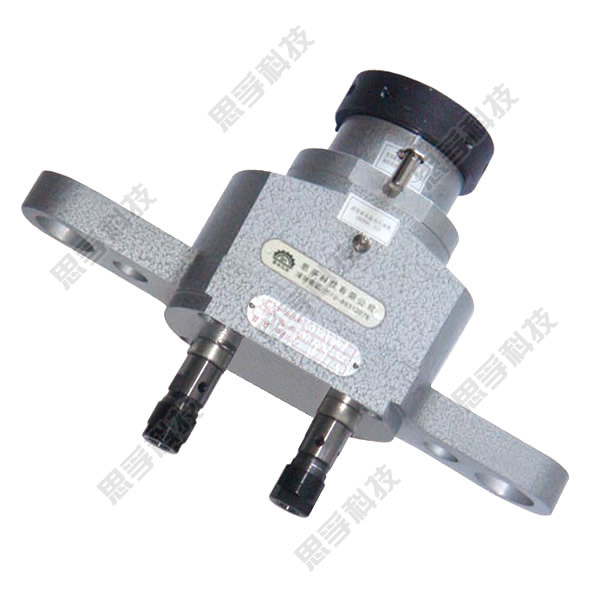

固定式T型系列多轴器（适合中切削，孔位呈直线分布）
规格
| 型号 |
FT-52 |
FT-125 |
FT-200 |
FT-300 |
FT-400 |
| 筒夹规格 |
ER8/5 C5/5 |
ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12 |
| 最大钻孔能力 |
D4/4 |
| 钻速比 |
1:1或客户指定 |
| 最小距离（二轴间） |
13 10 |
ER11/18 C6/18 ER16/26 C9/22 ER20/28 C12/26 |
| 最大轴心范围 |
52 |
125 |
200 |
300 |
400 |
| 轴数 |
2-4 |
2-6 |
2-12 |
2-16 |
2-20 |

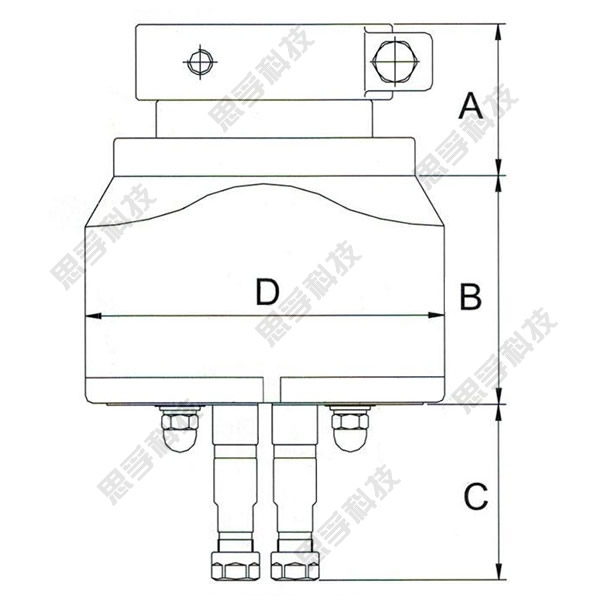

| 型号 |
A |
B |
C |
D |
| φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
ER16/ER20/C9/C12 |
ER11/C6 |
ER11 |
ER16 |
ER20 |
C6 |
C9 |
C12 |
| FT-125 |
65 |
75 |
105 |
115.5 |
103 |
44.5 |
62.5 |
65.5 |
54.3 |
67.3 |
73.1 |
172×108 |
| FT-200 |
57 |
67 |
96 |
125 |
112 |
248×136 |
| FT-300 |
44.5 |
60.5 |
65.5 |
54.3 |
65.3 |
69.3 |
400×180 |
| FT-400 |
480×180 |
Specifications
| Type |
FT-52 |
FT-125 |
FT-200 |
FT-300 |
FT-400 |
| Collet/ |
ER8/5 C5/5 |
ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12 |
| Max.Drilling Capacity |
D4/4 |
| R.P.M |
1:1 or Customer specified |
| Lowest Distance(Two Spindle) |
13 10 |
ER11/18 C6/18 ER16/26 C9/22 ER20/28 C12/26 |
| Max.Range of Centers |
52 |
125 |
200 |
300 |
400 |
| Spindle |
2-4 |
2-6 |
2-12 |
2-16 |
2-20 |
| Type |
A |
B |
C |
D |
| φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
ER16/ER20/C9/C12 |
ER11/C6 |
ER11 |
ER16 |
ER20 |
C6 |
C9 |
C12 |
| FT-125 |
65 |
75 |
105 |
115.5 |
103 |
44.5 |
62.5 |
65.5 |
54.3 |
67.3 |
73.1 |
172×108 |
| FT-200 |
57 |
67 |
96 |
125 |
112 |
248×136 |
| FT-300 |
44.5 |
60.5 |
65.5 |
54.3 |
65.3 |
69.3 |
400×180 |
| FT-400 |
480×180 |
