| 型号 | FA-135 | FA-200 | FA-250 | FA-160×250 | FA-250×320 |
| 筒夹规格 | ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12 | ||||
| 最大钻孔能力 | |||||
| 钻速比 | 1:1或客户指定 | ||||
| 最小距离（二轴间） | ER11/18 C6/18 ER16/26 C9/22 ER20/28 C12/26 | ||||
| 最大轴心范围 | φ135 | φ200 | φ250 | 160×250 | 250×320 |
| 轴数 | 2-6 | 2-10 | 2-12 | 2-16 | 2-20 |

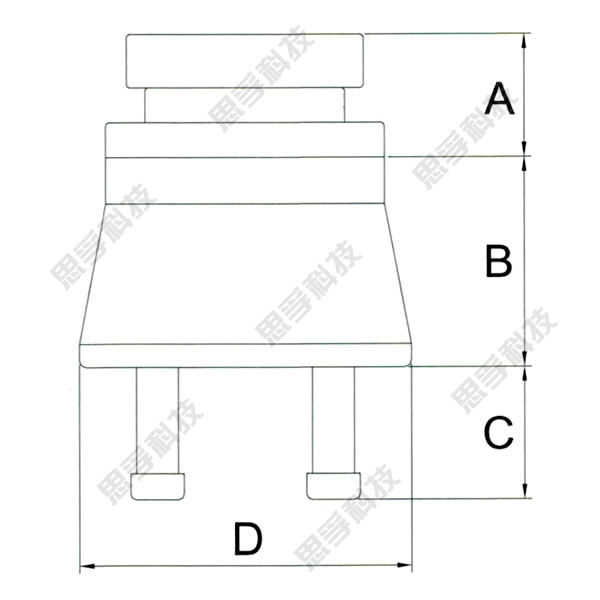

| 型号 | A | B | C | D | ||||||||
| φ65(MT2) | φ95(MT3) | φ90(MT4) | ER11/C6 | ER16/ER20/C9/C12 | ER11 | ER16 | ER20 | C6 | C9 | C12 | ||
| FA-135 | 57 | 67 | 96 | 112 | 125 | 44.5 | 62.5 | 65.5 | 54.3 | 67.3 | 73.1 | φ208 |
| FA-200 | φ278 | |||||||||||
| FA-250 | φ328 | |||||||||||
| FA-160×250 | 326×236 | |||||||||||
| FA-250×320 | 410×340 | |||||||||||
| Type | FA-135 | FA-200 | FA-250 | FA-160×250 | FA-250×320 |
| Collet/ | ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12 | ||||
| Max.Drilling Capacity | |||||
| R.P.M | 1:1 or Customer specified | ||||
| Lowest Distance(Two Spindle) | ER11/18 C6/18 ER16/26 C9/22 ER20/28 C12/26 | ||||
| Max.Range of Centers | φ135 | φ200 | φ250 | 160×250 | 250×320 |
| Spindle | 2-6 | 2-10 | 2-12 | 2-16 | 2-20 |
| Type | A | B | C | D | ||||||||
| φ65(MT2) | φ95(MT3) | φ90(MT4) | ER11/C6 | ER16/ER20/C9/C12 | ER11 | ER16 | ER20 | C6 | C9 | C12 | ||
| FA-135 | 57 | 67 | 96 | 112 | 125 | 44.5 | 62.5 | 65.5 | 54.3 | 67.3 | 73.1 | φ208 |
| FA-200 | φ278 | |||||||||||
| FA-250 | φ328 | |||||||||||
| FA-160×250 | 326×236 | |||||||||||
| FA-250×320 | 410×340 | |||||||||||
