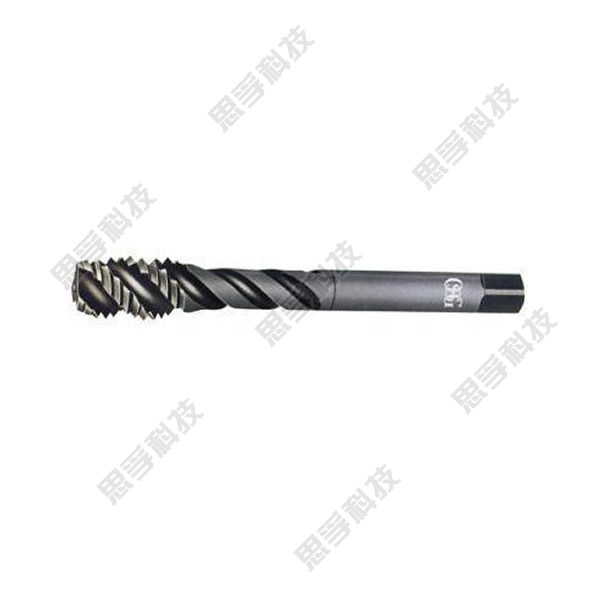

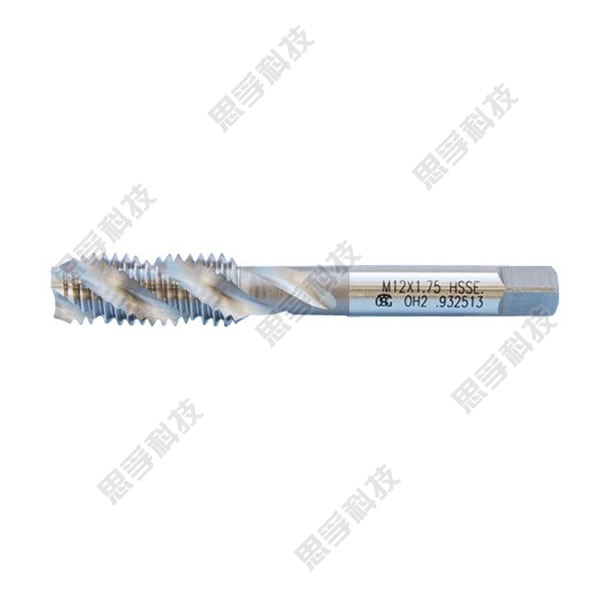

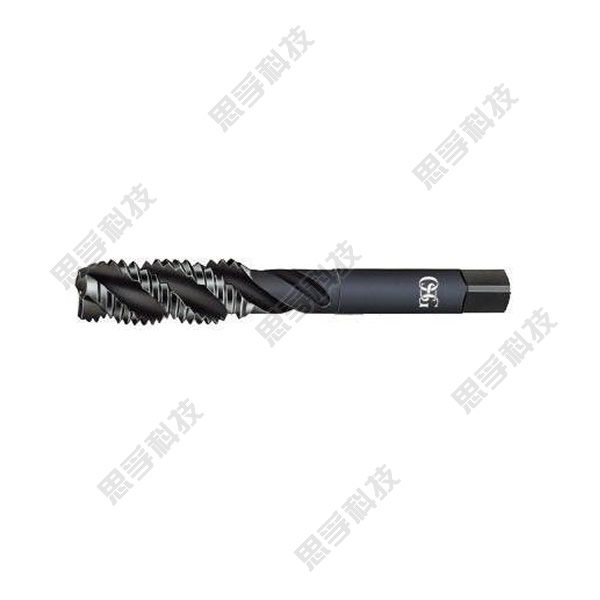

螺旋丝攻系列
螺旋丝攻对在盲孔内攻牙，切屑连续排出的钢铁材质效果良好。因为约35°之右旋蜗槽切屑可从孔内向外排出，切削速度可较直槽丝攻加快30-50％，盲孔
之高速攻牙效果良好因排屑顺利。对铸铁等切屑成粉末状的材料效果差。
一般用螺旋丝攻
涨大径用螺旋丝攻
不锈钢用螺旋丝攻
深孔用螺旋丝攻
镀钛处理螺旋丝攻
氧化处理螺旋丝攻
铝专用螺旋丝攻
Screw tap series
Screw tap in the blind hole tapping, chip continuous discharge of steel material effect is good. Because about 35 °
of the right hand worm groove chip from the hole introverted effluent out, cutting speed can be a straight
flute silk attack speed up 30-50%, blind hole of high speed tapping effect is good for clearance smoothly.
For cast iron, and other chip into powder material effect is poor.
General use screw tap
A major diameter screw tap
Stainless steel screw tap
Deep hole with screw tap
Plating titanium processing screw tap
Oxidation treatment screw tap
Aluminum special screw tap
| 公制粗螺纹 | 标准径 | 2级牙钻孔径 | |
| 最大 | 最小 | ||
| M1.0×0.25 | 0.75 | 0.785 | 0.729 |
| M1.1×0.25 | 0.85 | 0.885 | 0.829 |
| M1.2×0.25 | 0.95 | 0.985 | 0.929 |
| M1.4×0.3 | 1.10 | 1.142 | 1.075 |
| M1.6×0.35 | 1.25 | 1.321 | 1.221 |
| M1.7×0.35 | 1.35 | 1.421 | 1.321 |
| M1.8×0.35 | 1.45 | 1.521 | 1.421 |
| M2.0×0.4 | 1.60 | 1.679 | 1.567 |
| M2.2×0.45 | 1.75 | 1.838 | 1.713 |
| M2.3×0.4 | 1.90 | 1.979 | 1.867 |
| M2.5×0.45 | 2.10 | 2.138 | 2.013 |
| M2.6×0.45 | 2.20 | 2.238 | 2.113 |
| M3.0×0.5 | 2.50 | 2.599 | 2.459 |
| M3.5×0.6 | 2.90 | 3.010 | 2.850 |
| M4.0×0.7 | 3.30 | 3.422 | 3.242 |
| M4.5×0.75 | 3.80 | 3.878 | 3.688 |
| M5.0×0.8 | 4.20 | 4.334 | 4.134 |
| M6.0×1.0 | 5.00 | 5.153 | 4.917 |
| M7.0×1.0 | 6.00 | 6.153 | 5.917 |
| M8.0×1.25 | 6.80 | 6.912 | 6.647 |
| M9.0×1.25 | 7.80 | 7.912 | 7.647 |
| M10×1.5 | 8.50 | 8.676 | 8.376 |
| M11×1.5 | 9.50 | 9.676 | 9.376 |
| M12×1.75 | 10.30 | 10.441 | 10.106 |
| M14×2.0 | 12.00 | 12.210 | 11.835 |
| M16×2.0 | 14.00 | 14.210 | 13.835 |
| M18×2.5 | 15.50 | 15.744 | 15.294 |
| M20×2.5 | 17.50 | 17.744 | 17.294 |
| M22×2.5 | 19.50 | 19.744 | 19.294 |
| M24×3.0 | 21.00 | 21.252 | 20.752 |
| M27×3.0 | 24.00 | 24.252 | 23.752 |
| M30×3.5 | 26.50 | 26.771 | 26.211 |
| 公 制 | 英 制 | 英 制 | 直 径φ | 四角□ | PT | PS | PF | 直径φ | 四角□ | ||
| M3 | W1/8 | 4 | 3.22 | 1/8 | 1/8 | 1/8 | 8 | 6 | |||
| M4 | M4.5 | W5/32 | 5 | 4 | 1/4 | 1/4 | 1/4 | 11 | 9 | ||
| M5 | M5.5 | W3/16 | 5.5 | 4.5 | 3/8 | 3/8 | 3/8 | 14 | 11 | ||
| M6 | U1/4 | W1/4 | 6 | 4.5 | 1/2 | 1/2 | 1/2 | 18 | 14 | ||
| U5/16 | W5/16 | 6.1 | 5 | 5/8 | 19 | 15 | |||||
| M8 | M7 | 6.2 | 5 | 3/4 | 3/4 | 3/4 | 23 | 17 | |||
| M10 | M9 | U3/8 | W3/8 | 7 | 5.5 | 7/8 | 24 | 19 | |||
| M11 | U7/16 | W7/16 | 8 | 6 | 1 | 1 | 1 | 26 | 21 | ||
| M12 | 8.5 | 6.5 | 11/8 | 11/8 | 28 | 21 | |||||
| U1/2 | W1/2 | 9 | 7 | 11/4 | 11/4 | 11/4 | 32 | 26 | |||
| M14 | M15 | U9/16 | W9/16 | 10.5 | 8 | 13/8 | 13/8 | 13/8 | 35 | 26 | |
| U5/8 | W5/8 | 12 | 9 | 11/2 | 11/2 | 11/2 | 38 | 29 | |||
| M16 | 12.5 | 10 | |||||||||
| M17 | 13 | 10 | |||||||||
| M18 | U3/4 | W3/4 | 14 | 11 | |||||||
| M20 | 15 | 12 | |||||||||
| M22 | U7/8 | W7/8 | 17 | 13 | |||||||
| M24 | M25 | 19 | 15 | ||||||||
| M27 | M26 | U1 | W1 | 20 | 15 | ||||||
| M28 | 21 | 17 | |||||||||
| U1-1/8 | W1-1/8 | 22 | 17 | ||||||||
| M30 | 23 | 17 | |||||||||
| M32 | U1-1/4 | W1-1/4 | 24 | 19 | |||||||
| M33 | 25 | 19 | |||||||||
| M35 | M34 | U1-3/8 | W1-3/8 | 26 | 21 | ||||||
| M36 | M36 | 28 | 21 | ||||||||
| M39 | M40 | U1-1/2 | W1-1/2 | 30 | 23 | ||||||
| M42 | W1-5/8 | 32 | 26 | ||||||||
| M45 | U1-3/4 | W1-3/4 | 35 | 26 | |||||||
| M48 | W1-7/8 | 38 | 29 | ||||||||
