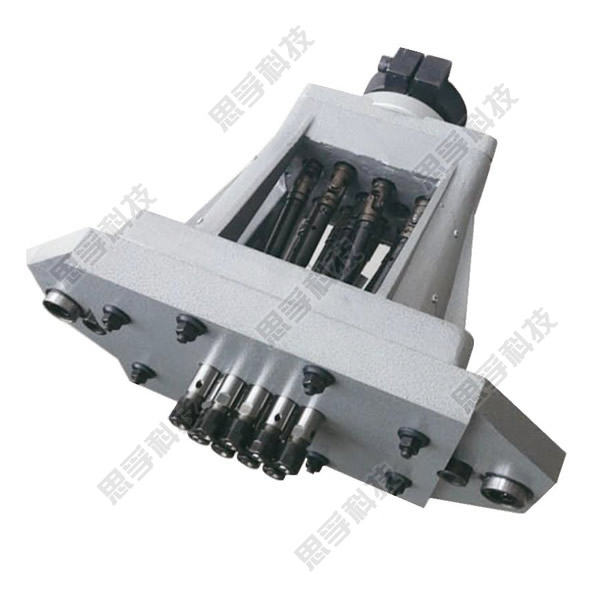

固定式U方型系列多轴器（适合中切削，孔位呈长方分布）
规格
| 型号 |
FU-100×165 |
FU-120×200 |
FU-120×300 |
FU-160×450 |
FU-220×360 |
| 筒夹规格 |
ER8/5 C5/5 ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12 |
| 最大钻孔能力 |
| 钻速比 |
1:1或客户指定 |
| 最小距离（二轴间） |
ER8/13 C5/13 ER11/18 C6/18 ER16/26 C9/24 ER20/28 C12/26 |
| 最大轴心范围 |
100×165 |
120×200 |
120×300 |
160×450 |
220×360 |
| 轴数 |
2-8 |
2-12 |
2-16 |
2-16 |
2-16 |

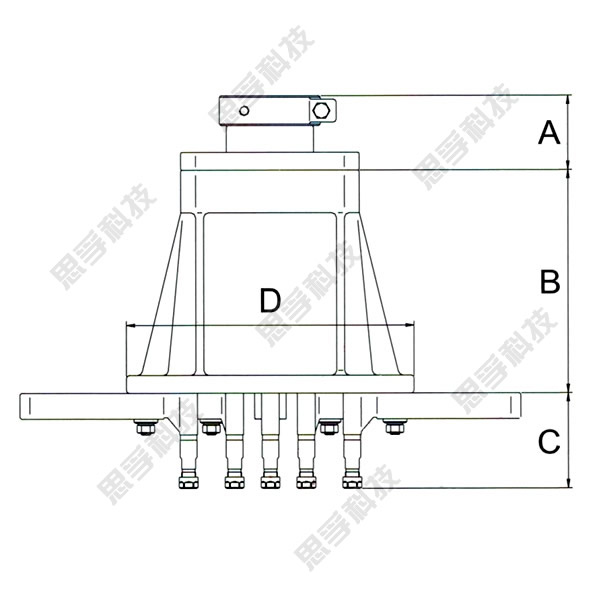

| 型号 |
A |
B |
C |
D |
| φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
ER8 |
ER11 |
ER16 |
ER20 |
C5 |
C6 |
C9 |
C12 |
| FU-100×165 |
|
|
|
|
|
|
|
|
|
|
|
|
342×288 |
| FU-120×200 |
390×302 |
| FU-120×300 |
490×304 |
| FU-160×450 |
585×285 |
| FU-220×360 |
520×380 |
| 型号 |
A |
B |
C |
D |
| φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
|
强力ER20 |
ER25 |
| FWU-100×165 |
|
|
|
|
|
|
342×288 |
| FWU-120×200 |
390×302 |
| FWU-120×300 |
490×304 |
Specifications
| Type |
FU-100×165 |
FU-120×200 |
FU-120×300 |
FU-160×450 |
FU-220×360 |
| Collet/ |
ER8/5 C5/5 ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12 |
| Max.Drilling Capacity |
| R.P.M |
1:1 or Customer specified |
| Lowest Distance(Two Spindle) |
ER8/13 C5/13 ER11/18 C6/18 ER16/26 C9/24 ER20/28 C12/26 |
| Max.Range of Centers |
100×165 |
120×200 |
120×300 |
160×450 |
220×360 |
| Spindle |
2-8 |
2-12 |
2-16 |
2-16 |
2-16 |
| Type |
A |
B |
C |
D |
| φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
ER8 |
ER11 |
ER16 |
ER20 |
C5 |
C6 |
C9 |
C12 |
| FU-100×165 |
|
|
|
|
|
|
|
|
|
|
|
|
342×288 |
| FU-120×200 |
390×302 |
| FU-120×300 |
490×304 |
| FU-160×450 |
585×285 |
| FU-220×360 |
520×380 |
| Type |
A |
B |
C |
D |
| φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
|
强力ER20 |
ER25 |
| FWU-100×165 |
|
|
|
|
|
|
342×288 |
| FWU-120×200 |
390×302 |
| FWU-120×300 |
490×304 |
