| 型式 | T-85 |
| 最大攻牙能力(S45C) | φ35m/m |
| 主轴转速 | |
| 主轴行程 | 85mm |
| 马力 | |
| 主轴前端 | ER-40,TR-32,MT-3#B,NT-30# |
| 间接传动，AX2沟皮带轮，时规皮带轮58T，RS-40=双列35T的链轮，订购时请指定一种 | |
| 净重 | 42kg |

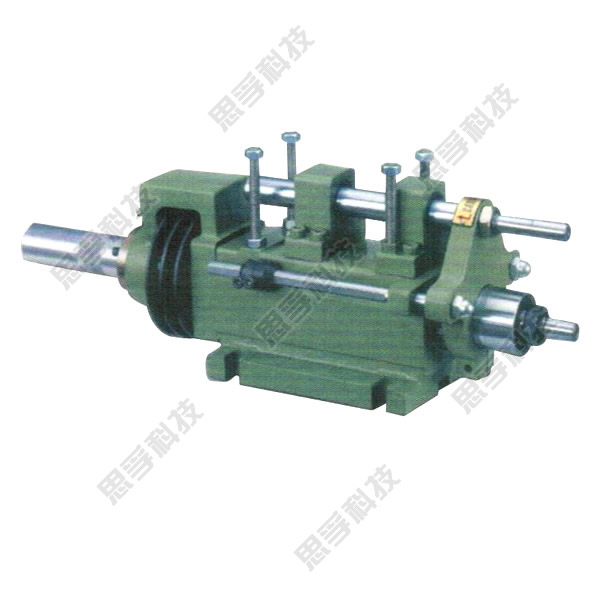

| Model | T-85 |
| Max.tapping capacity(S45C) | φ35m/m |
| Spindle speed | |
| Spindle travel | 85mm |
| Motor | |
| Chuck type | ER-40,TR-32,MT-3#B,NT-30# |
| Indirect transmission,Ax2 slots pulley，time gauge pulley 47T teeth RS-40=chain wheel with dual row 35T,please specify when the order is released | |
| Net weight | 42kg |
