可调式方型多轴器

专业制造卓越品质

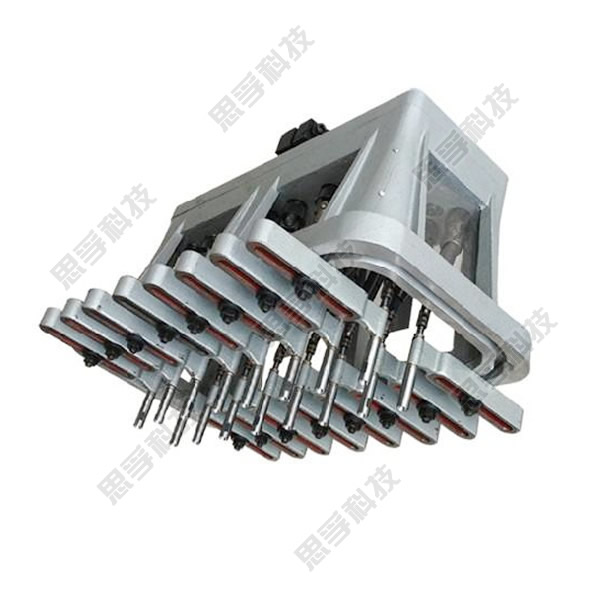

可调式方型多轴器

(中切削)U型方型多轴器
方型可调式多轴器结构与圆型相同，工作孔距如属直线或长方型万向多轴器，以免移位量太大损害万向节接头寿命，使用方法与圆型相同。(尽量配合工作之孔距坐标,设计齿轮箱结构即定镗孔位)

规格

型号	U-100×165	U-120×200	U-120×300	U-170×300	U-160×450	U-220×360	U-250×500	U-300×350
筒夹规格	ER8/5 C5/5 ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12
最大钻孔能力	ER8/5 C5/5 ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12
钻速比	1:1
最小距离（二轴间）	ER8/13 C5/13 ER11/18 C6/18 ER16/26 C9/22 ER20/28 C12/26
最大轴心范围	100×165	120×200	120×300	170×300	160×450	220×360	250×500	300×350
轴数	2-8	2-12	4-16	4-16	4-16	4-14	4-18	4-18

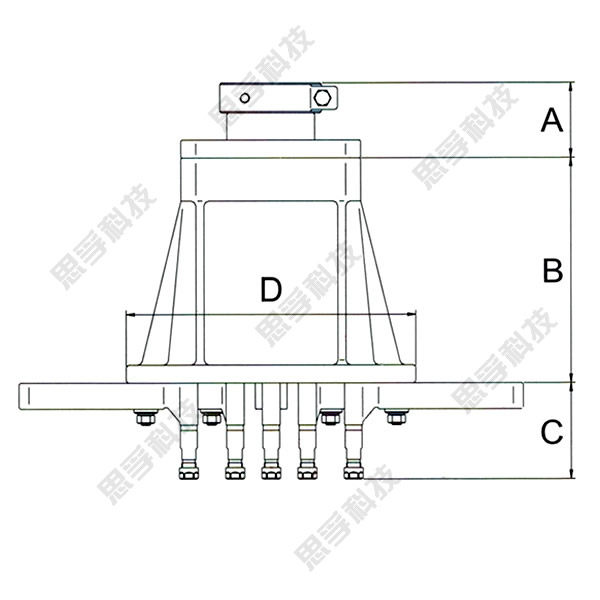

型号

φ65(MT2)

φ95(MT3)

φ90(MT4)

ER8

ER11

ER16

ER20

C12

U-100×165

111

225

100

342×288

U-120×200

390×302

U-120×300

490×304

U-220×360

520×380

U-160×450

585×285

U-250×500

660×400

U-300×350

510×460

(Medium cutting) Type U square shaft multi-spindle tool
It is an universal adjustable multi-spindle head,The regular spindle from 2-18 spindles,depend on customer's equirement, Special requirement is acceptable.It is suitable to work for lineral materials.The universal joint design,it is very to adjust each (When designing the structure of the gear case or the position of the bore,try to build the coordinate per working hole.)

Specifications

Type	U-100×165	U-120×200	U-120×300	U-170×300	U-160×450	U-220×360	U-250×500	U-300×350
Collet/	ER8/5 C5/5 ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12
Max.Drilling Capacity	ER8/5 C5/5 ER11/7 C6/6 ER16/10 C9/9 ER20/13 C12/12
R.P.M	1:1
Lowest Distance(Two Spindle)	ER8/13 C5/13 ER11/18 C6/18 ER16/26 C9/22 ER20/28 C12/26
Max.Range of Centers	100×165	120×200	120×300	170×300	160×450	220×360	250×500	300×350
Spindle	2-8	2-12	4-16	4-16	4-16	4-14	4-18	4-18

Type
