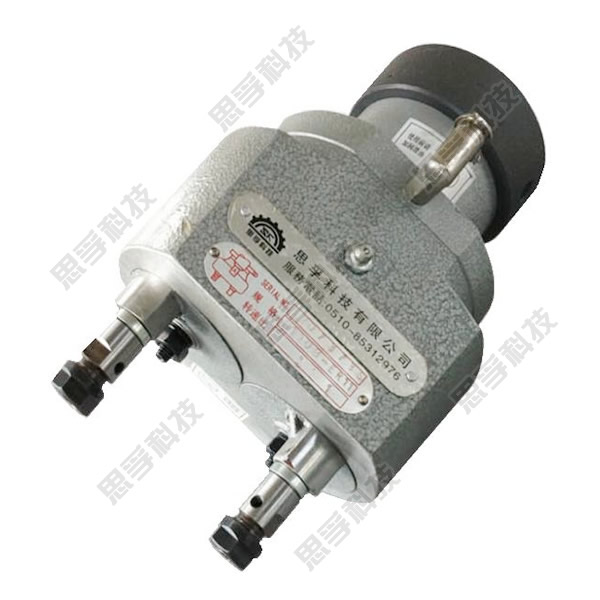

(中切削)两轴可调式T型多轴器
T型两轴可调式多轴器可做小距离之钻孔，攻牙作业，轻巧灵活，操作方便。
规格
| 型号 |
T-72 |
T-108 |
T-125 |
T-200 |
| 筒夹规格 |
ER8/5 |
ER11/7 |
ER16/10 |
ER20/13 |
ER20/13 |
ER25/16 |
| 最大钻孔能力 |
C5/5 |
C6/6 |
C9/9 |
C12/12 |
C12/12 |
|
| 钻速比 |
1:1 |
| 最小距离（二轴间） |
13 |
18 |
26 |
28 |
45 |
| 最大轴心范围 |
73 |
108 |
125 |
200 |
| 轴数 |
2 |
| 型号 |
A |
B |
C |
D |
|
φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
ER8 |
ER11 |
ER16 |
ER20 |
ER25 |
C5 |
C6 |
C9 |
C12 |
|
| T-72 |
65 |
75 |
105 |
87.7 |
45.6 |
/ |
/ |
/ |
/ |
49 |
/ |
/ |
/ |
116×104 |
| T-108 |
|
|
|
85.5 |
/ |
61.5 |
|
|
|
/ |
67 |
|
|
140×104 |
| T-125 |
|
|
|
97 |
|
/ |
84 |
84 |
|
|
/ |
87 |
91 |
170×104 |
| T-200 |
57 |
67 |
96 |
126 |
|
|
/ |
69 |
89 |
|
|
/ |
72.2 |
260×136 |
(Medium cutting) Type T with two spindles adjustable multi-spindle tool
It is a two spindle adjustable head.
It is suitable for small distance requirement.
It use fiexible collet.
Specifications
| Type |
T-72 |
T-108 |
T-125 |
T-200 |
| Collet/ |
ER8/5 |
ER11/7 |
ER16/10 |
ER20/13 |
ER20/13 |
ER25/16 |
| Max.Drilling Capacity |
C5/5 |
C6/6 |
C9/9 |
C12/12 |
C12/12 |
|
| R.P.M |
1:1 |
| Lowest Distance(Two Spindle) |
13 |
18 |
26 |
28 |
45 |
| Max.Range of Centers |
73 |
108 |
125 |
200 |
| Spindle |
2 |
| Type |
A |
B |
C |
D |
|
φ65(MT2) |
φ95(MT3) |
φ90(MT4) |
ER8 |
ER11 |
ER16 |
ER20 |
ER25 |
C5 |
C6 |
C9 |
C12 |
|
| T-72 |
65 |
75 |
105 |
87.7 |
45.6 |
/ |
/ |
/ |
/ |
49 |
/ |
/ |
/ |
116×104 |
| T-108 |
|
|
|
85.5 |
/ |
61.5 |
|
|
|
/ |
67 |
|
|
140×104 |
| T-125 |
|
|
|
97 |
|
/ |
84 |
84 |
|
|
/ |
87 |
91 |
170×104 |
| T-200 |
57 |
67 |
96 |
126 |
|
|
/ |
69 |
89 |
|
|
/ |
72.2 |
260×136 |
