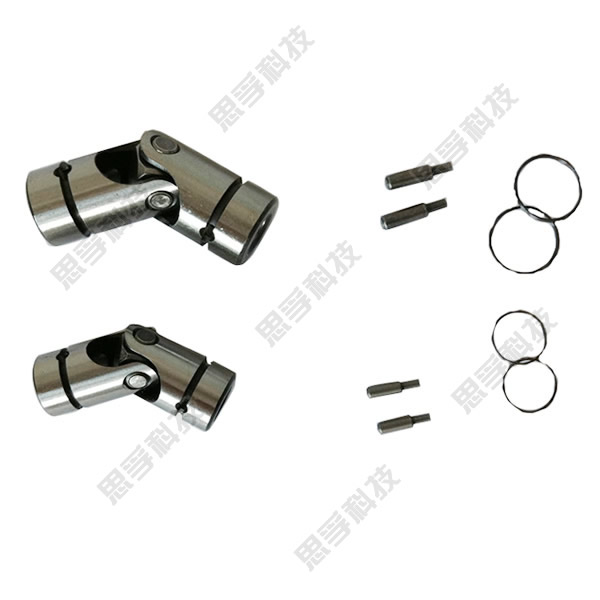

| 品名 | 型号 | 连接内孔直径 | 外圆直径 |
| 传统万向节 | C10 | φ10 | φ22 |
| C08 | φ8 | φ15 | |
| C06 | φ6 | φ12 |
万向节注意事项：
1.调整时不能超过规定的角度15度
2.如超过此极限芯轴易磨损货断裂
3.工作时应经常加润滑油脂
万向节组装注意事项
U型多轴器输出轴组由上下2个万向节配合六角传动轴组成，组装时须注意万向节内侧爪须同一位置，
方向，以免造成弯曲偏摆量过大损及其寿命。
| Name | Type | Connect I.D.(inner diameter) | O.D.(outer diameter) |
| Traditional cardan joint | C10 | φ10 | φ22 |
| C08 | φ8 | φ15 | |
| C06 | φ6 | φ12 |
1.Do not set the angle to more than the specified 15 degrees.
2.If the limit is exceeded,the shaft will be easy to wear or break.
3.Duringwork，iubrication be added frequently.
Note of cardan joint installation
The output shafta of the Type Umulti-spindle tool consist of two(up and down)cardan joint and
hexagonal driven shafts,When installing,note to have the inner clutches of the cardan joint in the same
position and direction,and avoid too much wrestor twist that may cause damage or influence the lifetime.
